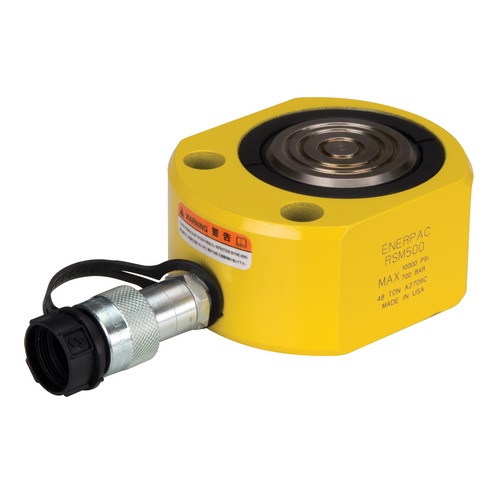

| Model Number | Maximum Operating Pressure (bar) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (kN) | Stroke (mm) | Collapsed Height A (mm) | Extended Height B (mm) | Return Type | Plunger Type | Material | Cylinder Effective Area Advance (cm2) | Oil Capacity Advance (cm3) | Surface Treatment | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RSM50 | 700 | 5 | 45 | 6 | 32 | 38 | Single-Acting, Spring Return | Solid | Steel | 6,5 | 4 | Paint | 1,0 |
| RSM100 | 700 | 10 | 101 | 11 | 43 | 54 | Single-Acting, Spring Return | Solid | Steel | 14,5 | 18 | Paint | 1,4 |
| RSM200 | 700 | 20 | 201 | 11 | 51 | 62 | Single-Acting, Spring Return | Solid | Steel | 28,7 | 32 | Paint | 3,1 |
| RSM300 | 700 | 30 | 295 | 13 | 58 | 71 | Single-Acting, Spring Return | Solid | Steel | 42,1 | 55 | Paint | 4,5 |
| RSM500 | 700 | 50 | 435 | 16 | 66 | 82 | Single-Acting, Spring Return | Solid | Steel | 62,1 | 99 | Paint | 6,8 |
| RSM750 | 700 | 75 | 718 | 16 | 79 | 95 | Single-Acting, Spring Return | Solid | Steel | 102,6 | 164 | Paint | 11,3 |
| RSM1000 | 700 | 100 | 887 | 16 | 85 | 101 | Single-Acting, Spring Return | Solid | Steel | 126,7 | 203 | Paint | 14,5 |
| RSM1500 | 700 | 150 | 1386 | 16 | 100 | 116 | Single-Acting, Spring Return | Solid | Steel | 198,1 | 317 | Paint | 26,3 |
